für Desktop Geräte
Laden Sie die entsprechende BIOS-Datei unter BIOS-Updates herunter und entpacken Sie diese auf einen mit FAT32/16/12 formatierten USB-Stick. Stecken Sie den USB-Stick ein und starten
Sie das SX-GATE.
Das Q-Flash-Programm kann direkt durch Drücken der Ende-Taste während des Bootvorgangs oder, wenn man die BIOS-Einstellungen
beim Booten mit der Entf-Taste geöffnet hat, durch die Taste F8 gestartet werden.
Bei der Hardware H410M S2H
V3 dauert der ganze Vorgang über 5 Minuten. Nach dem das Bios eingelesen
wurde, führt die Hardware
einen automatischen Reboot durch, danach bleibt
der Bildschirm für mehrere Minuten schwarz, zwischendurch ertönen kurze
Piep-Töne.
Haben Sie Geduld bis das Gerät wieder
automatisch hochfährt und machen Sie dann die entsprechenden
Bios-Einstellungen.

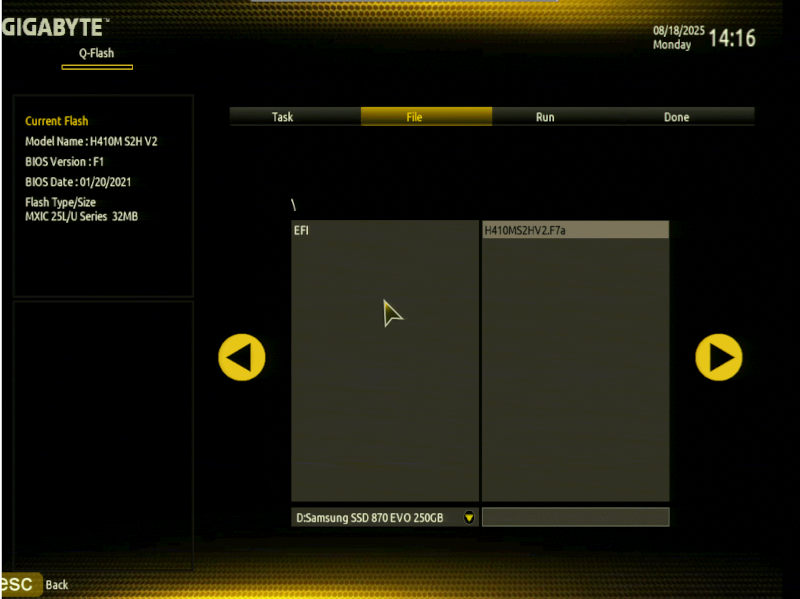

Wählen Sie den USB-Stick als Quelle und dann die entsprechende BIOS-Datei. Starten Sie nun den Flash-Vorgang.
BIOS-Einstellungen setzen für Desktop Geräte
Da das BIOS-Update die
Einstellungen zurücksetzt, müssen manche Einstellungen wieder
vorgenommen werden, um die optimale Funktionalität
zu erreichen.
Vor allem "CSM Support" ist
bei älterer Hardware wichtig, da hier der Bootloader nur den Legacy
Modus unterstützt und sonst
nicht booten würde. Bei aktuellen Geräten H410M
S2H V3 ist "CSM Support" nicht mehr nötig und bleibt daher
standardmässig
deaktiviert.
Bei der H410M S2H-Serie drücken Sie im BIOS als erstes F2, um in den "Advanced Mode" zu wechseln.
| BIOS | |
|---|---|
| Windows8/10 Features | Other OS |
| CSM Support | Enabled |
| LAN PXE Boot Option ROM | Disabled |
| Storage Boot Option Control | Legacy |
| Other PCI Devices | Legacy |
| Peripherals | |
| Initial Display Output | IGFX |
| OnBoard LAN Controller | Enabled |
| Power | |
| Platform Power Management | Disabled |
| AC BACK | Always On |
| Soft-Off by PWR-BTTN | Delay 4 Sec. |
| System > Platform Power | |
|---|---|
| Platform Power Management | Disabled |
| Soft-Off by PWR-BTTN | Delay 4 Sec. |
| AC BACK | Always On |
| System > IO Ports | |
| Initial Display Output | IGFX |
| Audio Controller | Disabled |
| OnBoard LAN Controller | Enabled |
| Boot | |
| Windows10 Features | Other OS |
| CSM Support | Enabled |
| LAN PXE Boot Option ROM | Disabled |
| Storage Boot Option Control | Legacy |
| Other PCI Devices | Legacy |
| System > Platform Power | |
|---|---|
| Platform Power Management | Disabled |
| Soft-Off by PWR-BTTN | Delay 4 Sec. |
| AC BACK | Always On |
| System > IO Ports | |
| Internal Graphics | Auto |
| Audio Controller | Disabled |
| PCH LAN Controller | Enabled |
| APP Center Download and Install Configuration | Disabled |
| Boot | |
| Windows10 Features | Other OS |
| CSM Support | Disabled |
| Secure Boot | Disabled |
